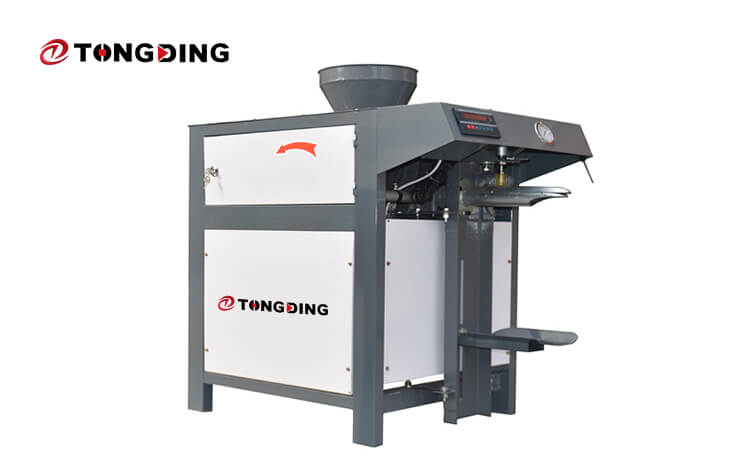

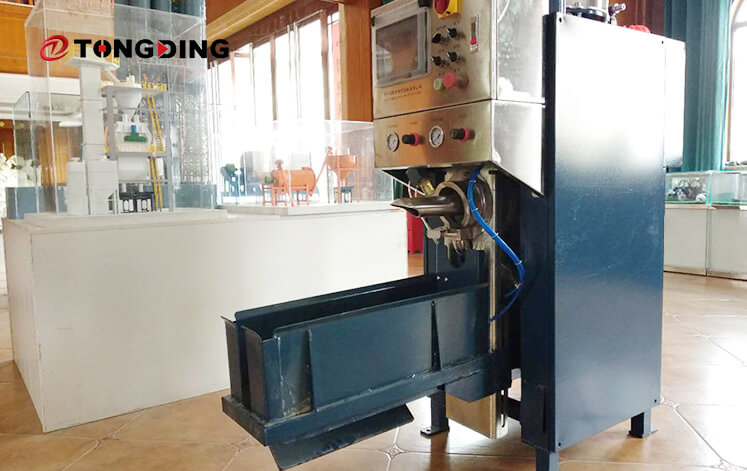

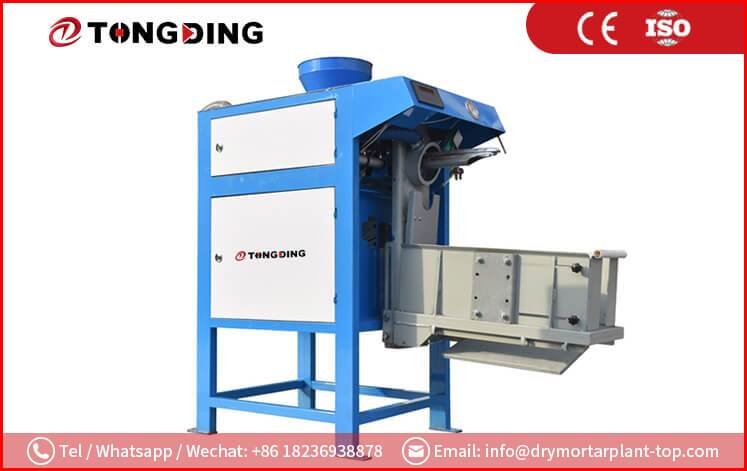

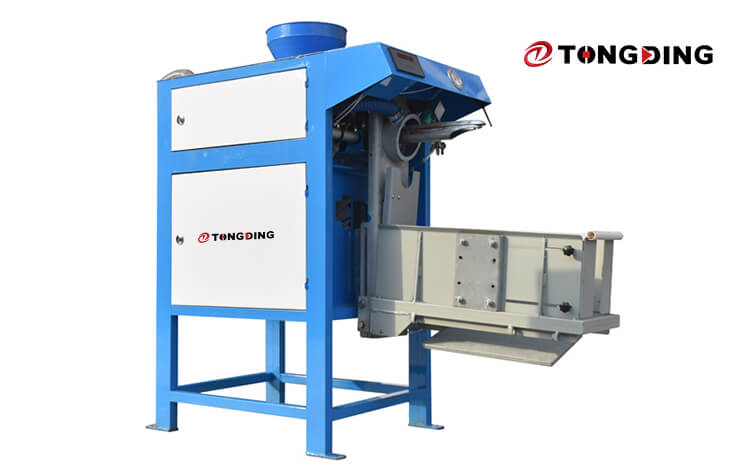

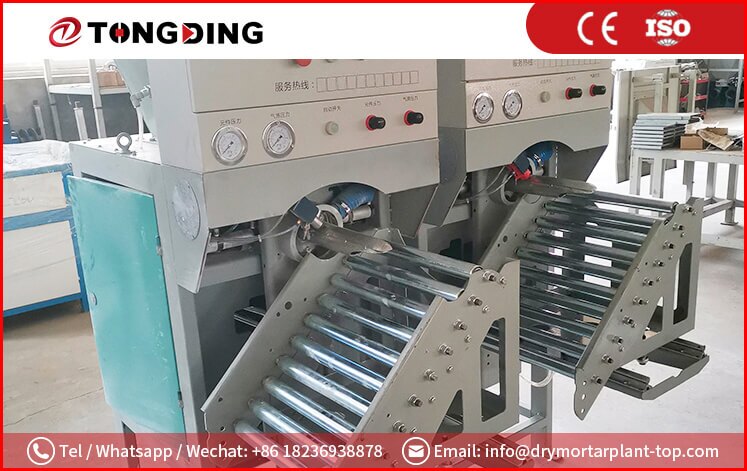

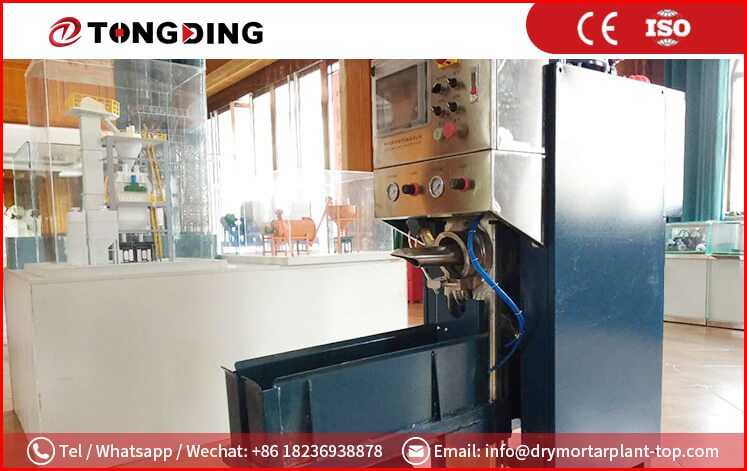

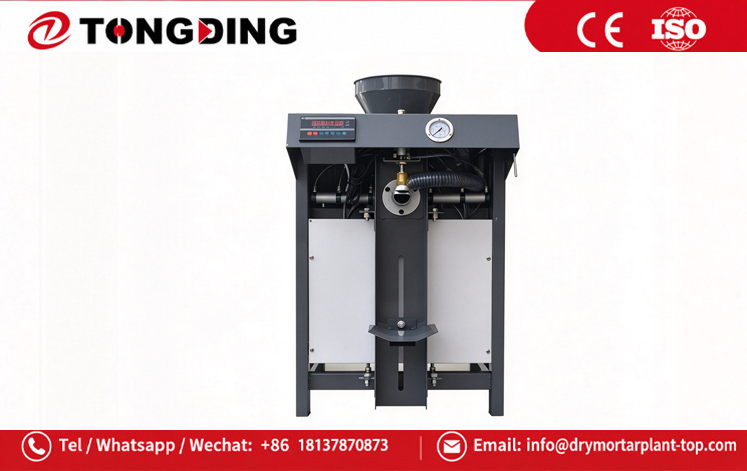

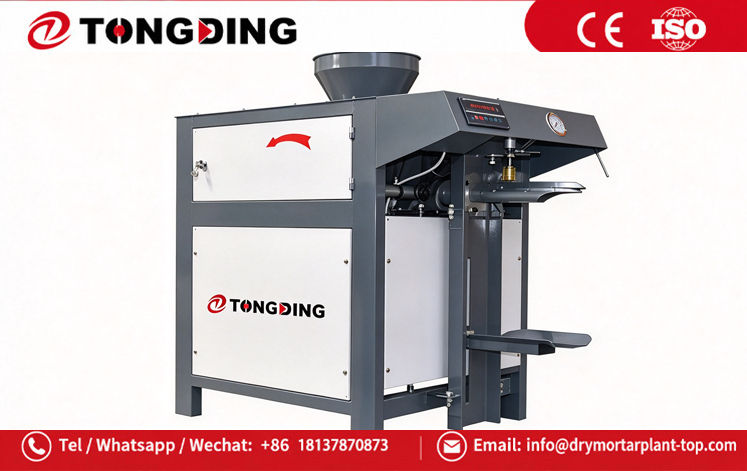

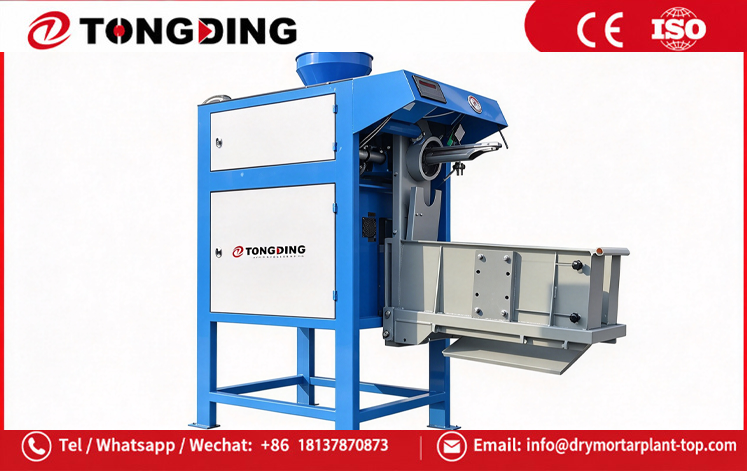

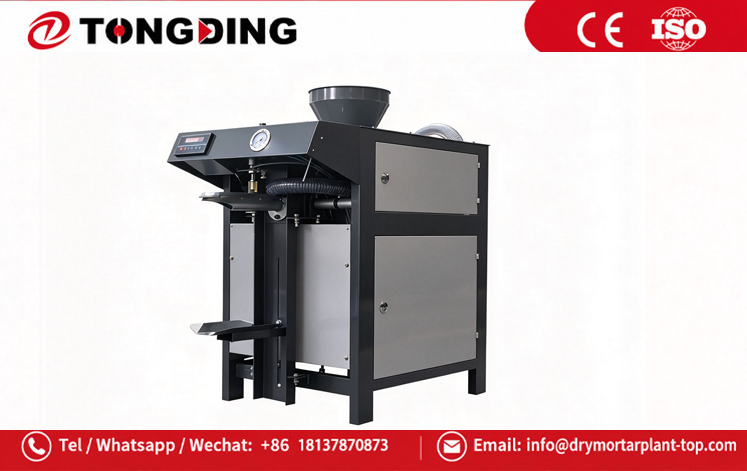

Valve bag Packing Machine
Fully automatic valve bag packaging machine is designed for the automated filling of powder and granular materials, suitable for mass production across various industries.
Output: 100–1,200 bags/hour with precise weighing accuracy.
Bag specifications: 10–50 kg/bag.
Applications: Packaging of dry materials in sectors such as :construction materials, chemicals, agricultural supplies, and food.
Bag materials: Kraft paper, PP woven fabric, PE,and paper-plastic composites.
Bag types: Compatible with various standard valve bags.
Product Introduction
1.Valve port packaging machine, the bag body is sealed up and down, leaving a feed port for machine filling, the packaged products are loaded into the bag from the filling port under pneumatic or mechanical power, and the goods are filled after the goods are filled. Objects will squeeze the closed valve port from the inside to achieve the purpose of sealing.
2.Valve port packaging machines are mainly divided into impeller packaging machine, air floating packing machine and pneumatic packaging machine.
Features
1.Automatic weighing and packing system, weighing accurately;
2.Small size and light quality, moving and installation conveniently;
3.Steady performance, easy to operate and maintenance;
4.High automation, labor-saving and increase efficiency.
5.No artificial bagging, save labor costs
Working Principle
1.The automatic weighing and packing machine receives the weight of analog signal by gauge and sensor and convert to figure signal, to control contactor and solenoid vale by relay switching signal to achieve the motor rotation stop and air cylinder operation. The discharge principle is use high-speed rotation of the power head paddles make the material quickly set aside from the discharge port, the internal air blown inside the power head form a high pressure and puff away materials to help paddles disperse the material.
2.According to the weight set in advance, after the material is filled, the bag pushing device will be automatically pushed to the belt conveyor belt conveyor.
Parameter
|
Model |
Working environment |
Air pressure |
Work power |
Dimensions(L*W*H) (mm) |
|
TCF-50M |
-5℃～+40℃
|
0.4-0.6MPa |
AC220V/50HZ |
1500*550*1000 |
|
TD-QB-50 |
1400*540*1500 |
|||
|
TD-QB-60 |
1400*540*1500 |
|||
|
TD-F-01 |
AC380V, 50hz,three-phase four-wire |
1070*670*1030 |
||
|
TCY-50M |
1300*1150*680 |
FAQ
Q1: What materials and industries is the equipment suitable for?
A: It is suitable for dry materials such as putty powder, cement, powders, and granules. It is widely used in the building materials, chemical, and agricultural supply industries but is not suitable for packaging moist or viscous materials.
Q2: What are the equipment's production capacity and accuracy?
A: It offers a production capacity of 300–1,200 bags per hour and supports 10–50 kg packaging. It features intelligent metering and precise weighing, making it ideal for mass production.
Q3: What types of packaging bags are compatible?
A: It accommodates standard valve bags—such as kraft paper, PP woven, and paper-plastic composite bags—without the need to change parts.
Q4: How are material leakage and bag jamming issues resolved?
A: For material leakage, simply clear any blockages at the discharge outlet. For bag jams, calibrate the bag-clamping pressure or switch to standard packaging bags.
Q5: Is it easy to operate? Can parameters be adjusted?
A: It features simple touch-screen operation and allows for the customization of parameters such as weight, speed, and output to meet various production needs.
Q6: How is daily maintenance performed?
A: Regular cleaning of the discharge outlet and maintenance of pneumatic components, along with cleaning and dust protection during downtime, ensure stable equipment operation.
