Single Drum & Three Pass Rotary Dryer For Sand
Tongding Machinery as a reliable manufacturer , Tongding Machinery designs and manufactures both single drum rotary dryer and three pass rotary dryer – two reliable sand dryer machine options for processing granular and powdered materials. Although they handle similar feedstocks, each offers distinct advantages in efficiency, space, and operating cost. This guide helps you make the right choice for your project, with full technical support and engineer on-site installation from Tongding group.
Common Materials for Both Dryers
Both the single drum and three pass rotary dryers can effectively process a wide range of materials, including:
1.Sand varieties: Silica sand, river sand, quartz sand, sea sand, construction sand, foundry sand
2.Industrial by-products: Fly ash, slag, red mud, mineral powder, coal powder, ore
3.Biomass & organics: Sawdust, wood chips, bagasse, distillers' grains, chicken manure
4.pecialty materials: Sludge (industrial & municipal), clay, industrial salt, fertilizer, feed
Whether you need a silica sand dryer, fly ash dryer, sludge dryer, clay dryer, or industrial salt dryer, both machines can get the job done – but the optimal choice depends on your specific priorities.
Product Introduction

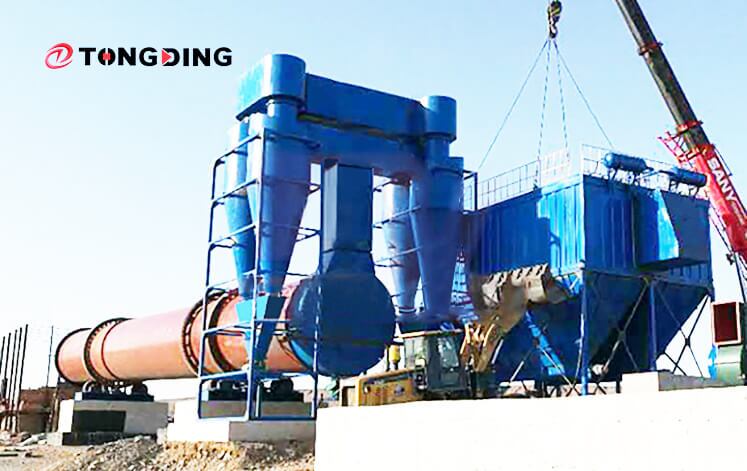

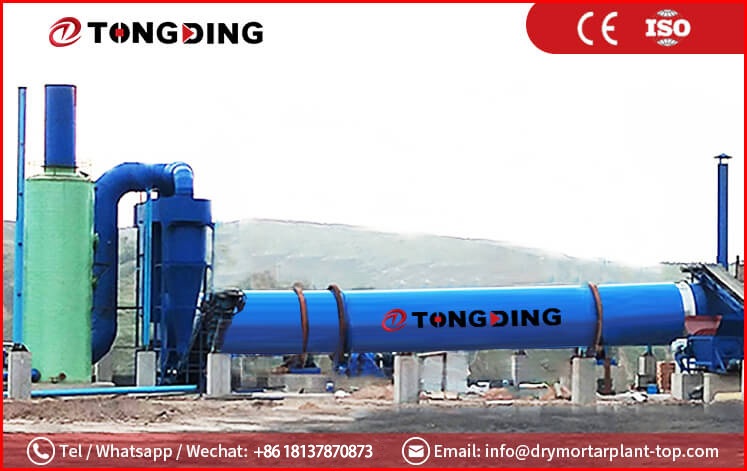

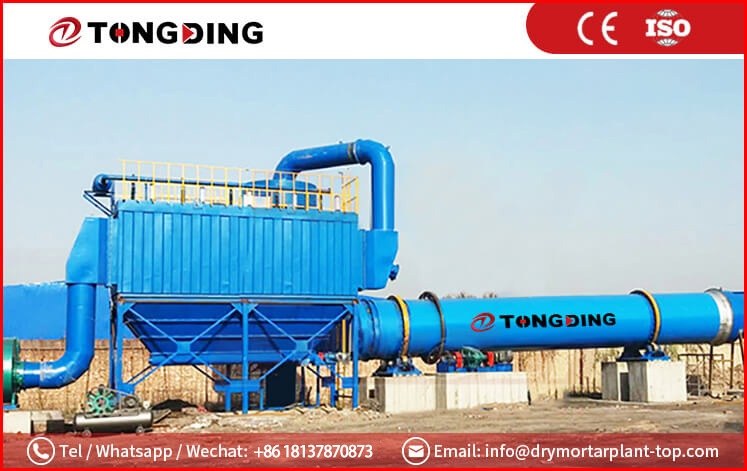

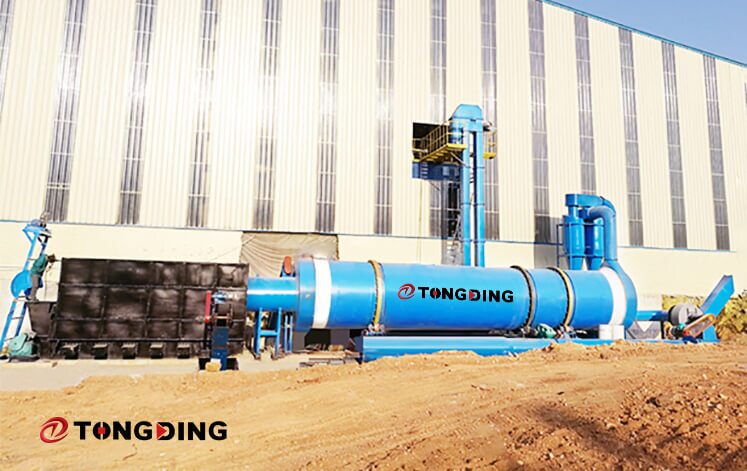

Single Drum Rotary Dryer
The single drum rotary dryer features a simple rotating cylindrical shell with internal lifting flights. Material enters one end, tumbles through the hot air stream, and discharges from the other. Its straightforward design makes it a proven workhorse for continuous operation.
Key advantages:
1.Lower initial investment and installation cost
2. Simple structure with fewer moving parts – easy to maintain
3.Strong adaptability to sticky or lumpy materials
4.Reliable 24/7 continuous operation
5. Capacity range: 5–80 T/H (customizable)
Best suited for operations with ample floor space, moderate budgets, and relatively uniform moisture content.

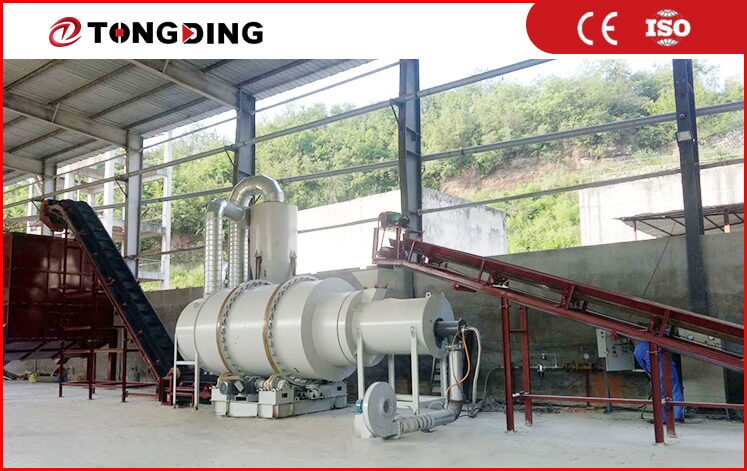

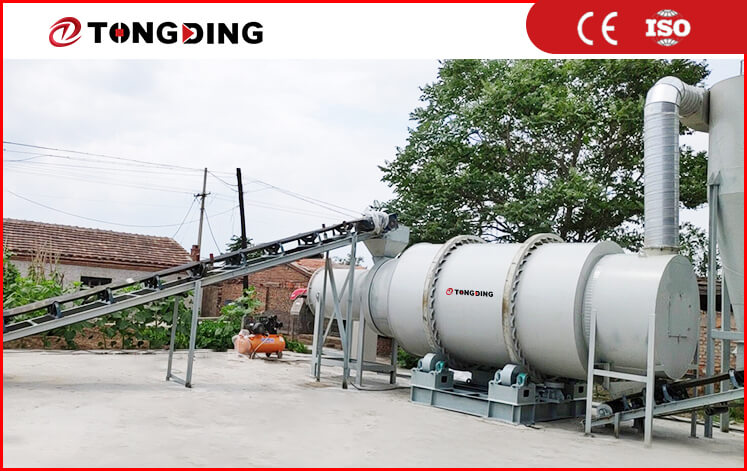

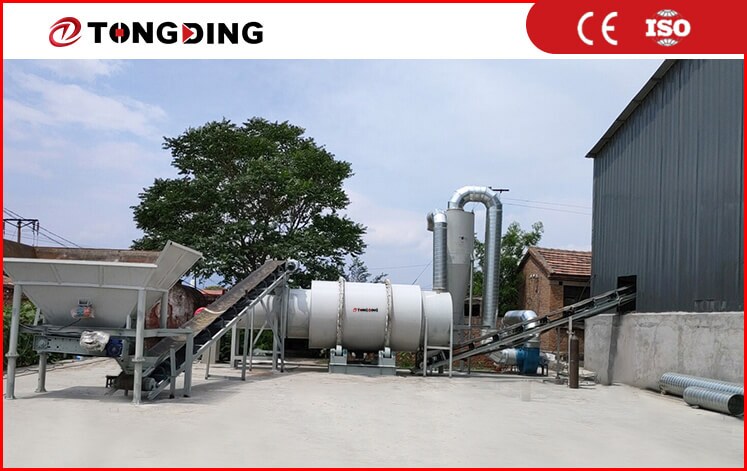

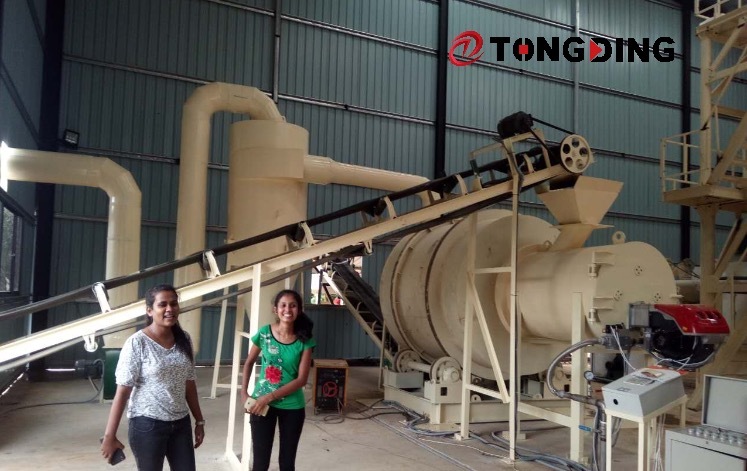

Three Pass Rotary Dryer
The three pass rotary dryer (also called triple-pass dryer) consists of three concentric drums nested together. Material travels sequentially through the inner, middle, and outer cylinders, maximizing heat exchange while minimizing floor space.
Key advantages:
1.Thermal efficiency up to 70–80% – significantly reduces fuel costs
2.Compact footprint – only about one-third the space of a single drum dryer for equivalent output
3. Superior drying uniformity due to extended residence time across three stages
4. Excellent sealing and environmental performance
5.Capacity range: 8–120 T/H (customizable)
Best suited for operations prioritizing energy savings, limited space, strict environmental compliance, and high-volume production.
Side-by-Side Comparison
| Feature | Single Drum Dryer | Three Pass Dryer |
|---|---|---|
| Capacity | 5-100t/h | 5-100t/h |
| Heat source | biomass, natural gas, diesel, coal, etc | biomass, natural gas, diesel, coal, etc. |
| Thermal Efficiency | ~35–40% | 70–80% |
| Space Requirement | Longer footprint | Compact (~1/3 of single drum) |
| Initial Cost | Lower | Moderate–higher |
| Operating Cost | Higher fuel consumption per ton | Lower, significant energy savings |
| Maintenance | Simple | Moderate, but modular design |
| Drying Uniformity | Good | Excellent |
Technical Support & On-Site Installation
Tongding group stands behind every machine with comprehensive after-sales service:
1.Custom engineering – system design based on your material moisture, particle size, and capacity requirements
2.Professional engineer dispatch – our technicians travel worldwide to supervise installation, commissioning, and operator training
3.24/7 technical support – remote assistance and spare parts supply to keep your production line running smoothly
24.Turnkey solutions – from foundation drawing to final commissioning, we handle it all
Which One Should You Choose?
Choose the Single Drum Dryer if:
1.Your budget is limited
2.You have adequate floor space
3.You need a simple, rugged machine for materials like silica sand, clay, or mineral powder
4.Your moisture content is relatively consistent
Choose the Three Pass Dryer if:
1.You want long-term energy savings and lower operating costs
2.Your plant has limited space
3.You require superior drying uniformity for high-value materials
4.You are processing fly ash, sludge, industrial salt, or fine sands
5.Environmental compliance is a top priority
No matter you need a cost-effective single drum dryer for multi-material mixed drying, or energy-saving three pass rotary dryer for mass silica sand production, Tongding Group can match the proper sand dryer solution for you.
