Sand Rotary Dryer

Capacity: 5-100 t/h

Heat Source：Suitable for biomass, natural gas, diesel, coal, etc.

Application: Suitable for drying the sand, fly ash, coal, mineral materials, slag and other material.

Send E-mail Inquiry Now

Product Introduction

The sand dryer, also known as a three-layer drum dryer or a three-return cylinder dryer, is an industrial dryer designed for non-viscous, liquid materials. It is a development and improvement based on the single-cylinder dryer. The three-cylinder dryer, manufactured by TingDing company, is currently available with mature technology. It effectively dries various materials such as sand, fly ash, coal, mineral materials, and slag, producing excellent drying results.

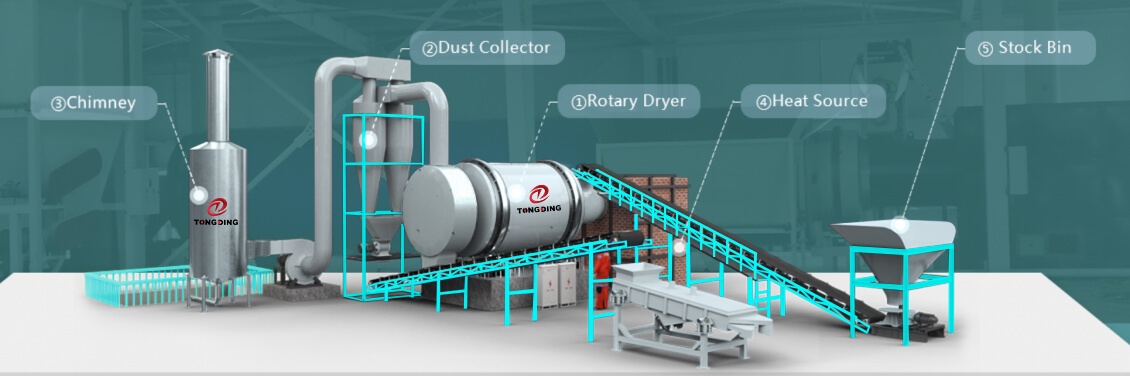

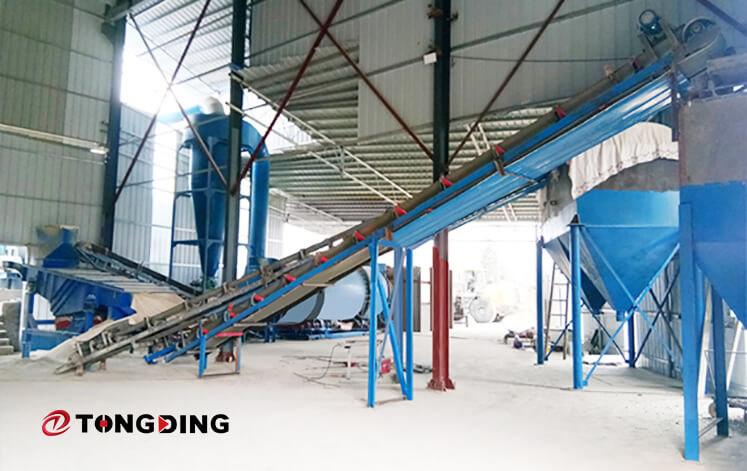

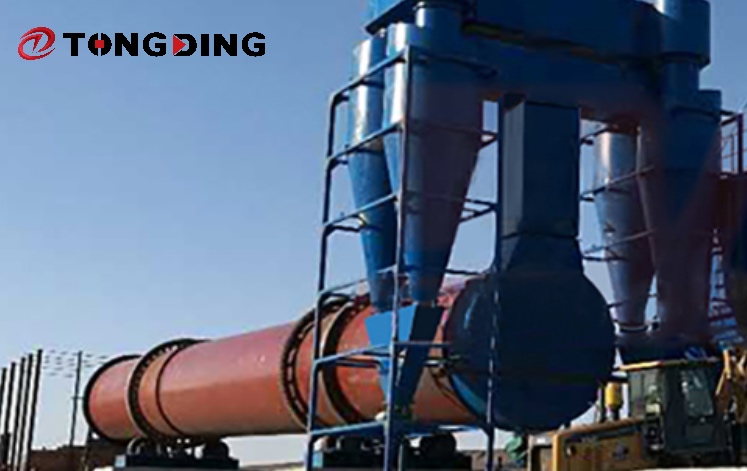

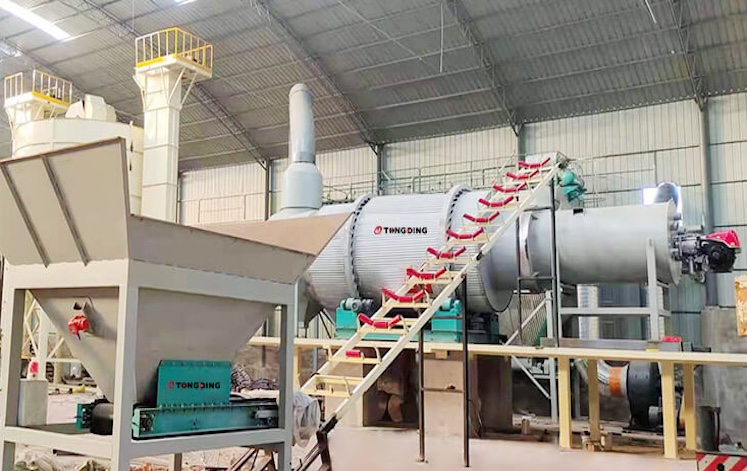

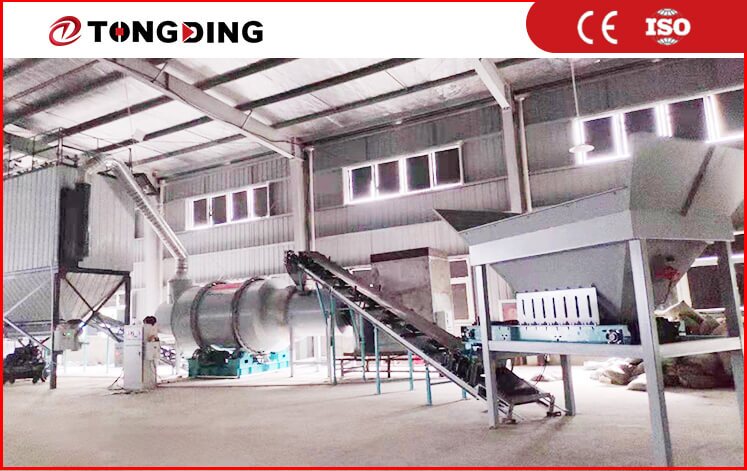

Layout Reference

Working Principle

The sand is transported to the silo either by a belt conveyor or a bucket elevator, and then transported to the feed end through the silo feeder. In order to facilitate the smooth flow of sand into the dryer, the inclination of the feeding pipeline should exceed the natural inclination of the materials. The rotating cylinder of the dryer is slightly inclined to the horizon, allowing for the material to be fed from the higher end while the heat carrier enters from the lower end, producing adverse contact between them. Sometimes, they can be fed into the cylinder together. As the cylinder rotates, the sand is carried to the lower side by gravity.

During the forward movement of the sand, the wet raw material is directly or indirectly roasted by the heat, allowing for rapid drying. The final product is discharged through either a belt conveyor or a screw conveyor. A shoveling plate is installed in the dryer to increase the contact area between the airflow and materials, enhance efficiency, and promote material flow.

The heat carrier used is typically hot air or flue gas, among others. Following the dryer process, a cyclone dust collector is necessary to capture items in the airflow. To further reduce the dust load of the exhaust, it is recommended to use either a bag-type or wet-type dust collector and then discharge the waste gas accordingly.

Applicable Materials

Foundry sand, Quartz sand, Garnet sand, Emery, Kuala kangsar, Sand, River sand, Sea sand.

Parameter

Model（m）	Output（T/h）			Coal consumption kg/t	Total power
Model（m）	River sand	Fly ash	Mineral waste residue	Coal consumption kg/t	Total power
TDOPQ5	4-5	2-3	3-5	12-14	5.5kw
TDOPQ12	8-12	4-6	8-10	12-14	3kw×2
TDOPQ15	12-15	6-7	10-13	10-12	4kw×2
TDOPQ18	14-18	7-9	12-15	10-12	5.5kw×2
TDOPQ28	23-28	10-13	20-22	10-12	5.5kw×4
TDOPQ35	30-35	15-18	25-30	10-12	5.5kw×4
TDOPQ40	35-40	18-20	32-35	8-10	7.5kw×4
TDOPQ45	40-45	20-25	35-40	8-10	7.5kw×4
TDOPQ50	45-50	25-30	40-45	8-10	11kw×4
TDOPQ55	50-55	30-35	45-50	8-10	11kw×4
TDOPQ70	60-70	35-40	60-65	6-8	15kw×4
TDOPQ80	70-80	40-45	70-75	6-8	15kw×4
TDOPQ90100	90-100	45-50	80-90	6-8	18.5kw×4
TDOPQ80100	80-100	45-60	80-90	6-8	18.5kw×4
（The output is set according to moisture : dry from 15% to 1-3%）
