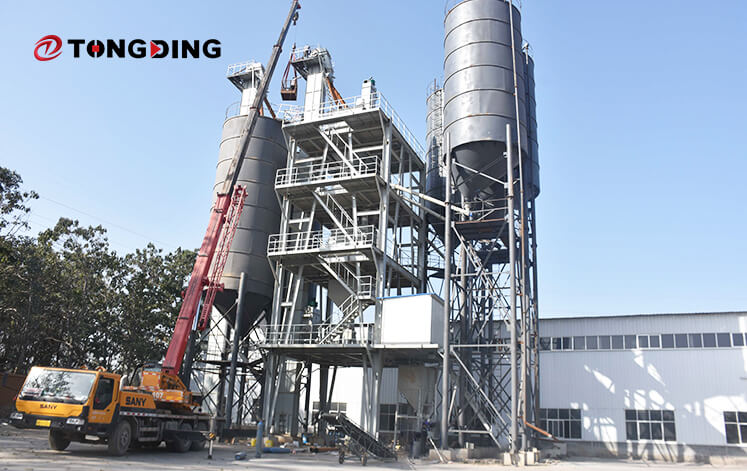

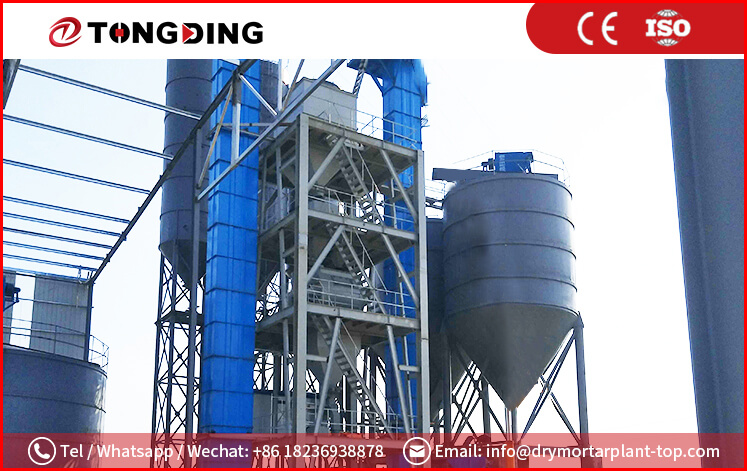

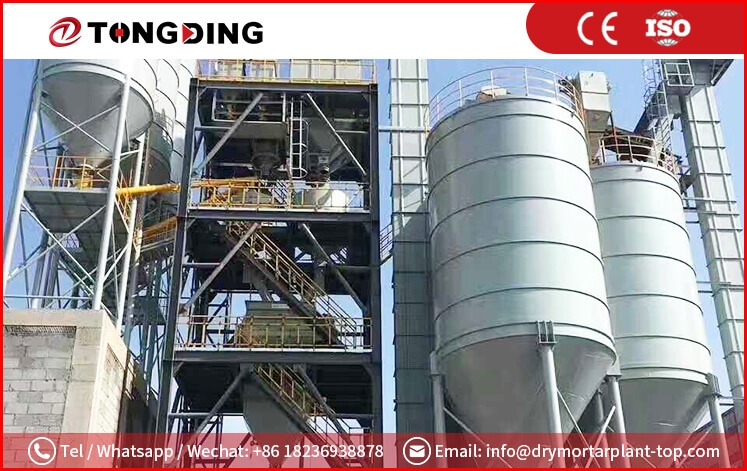

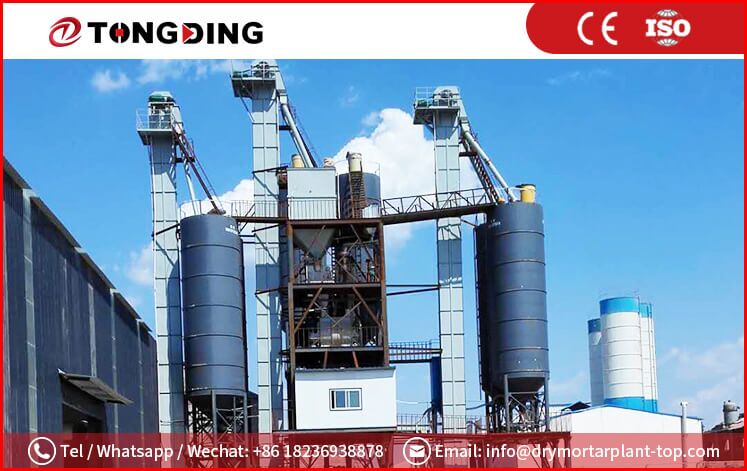

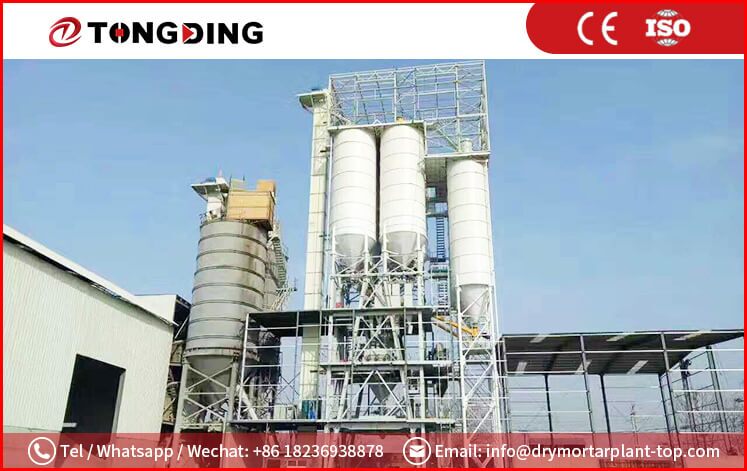

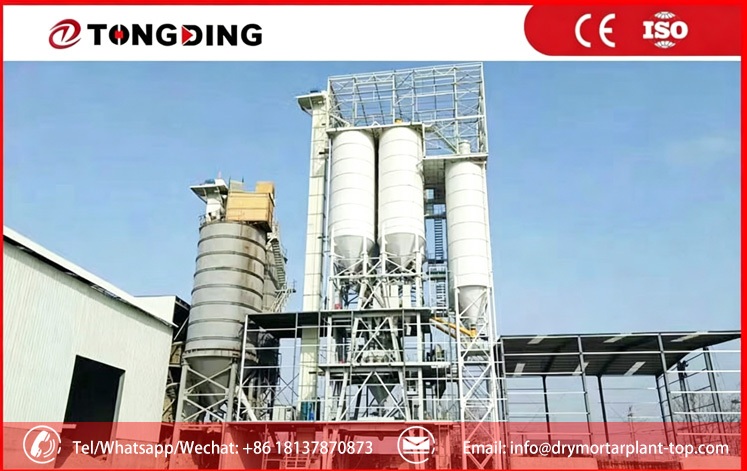

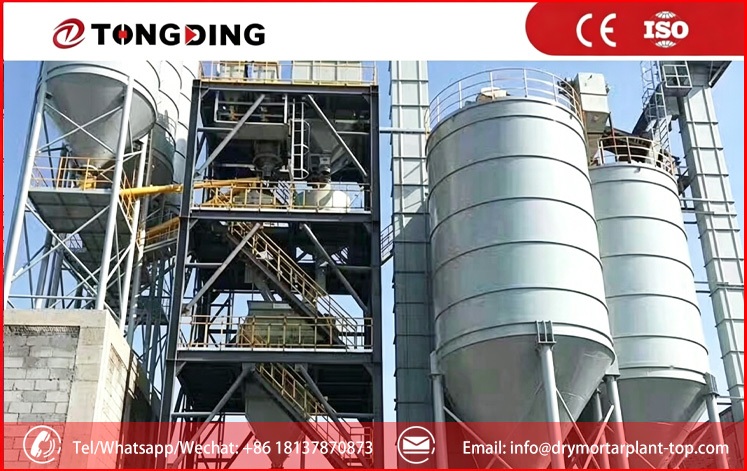

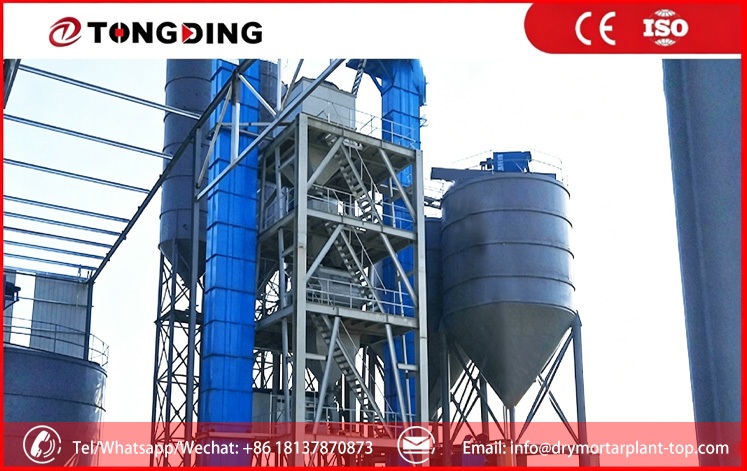

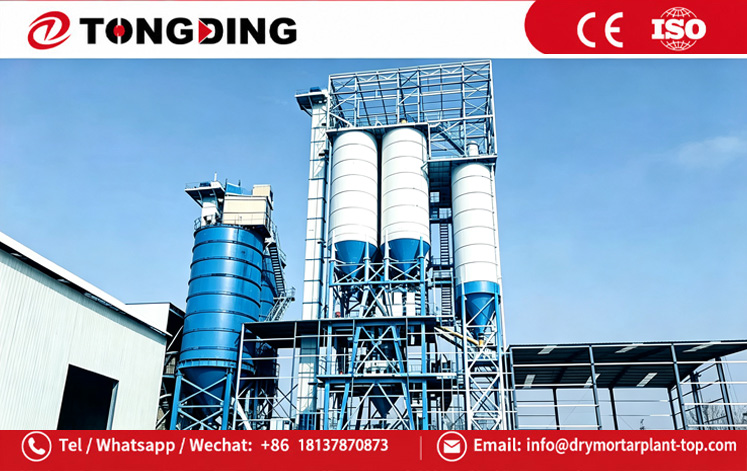

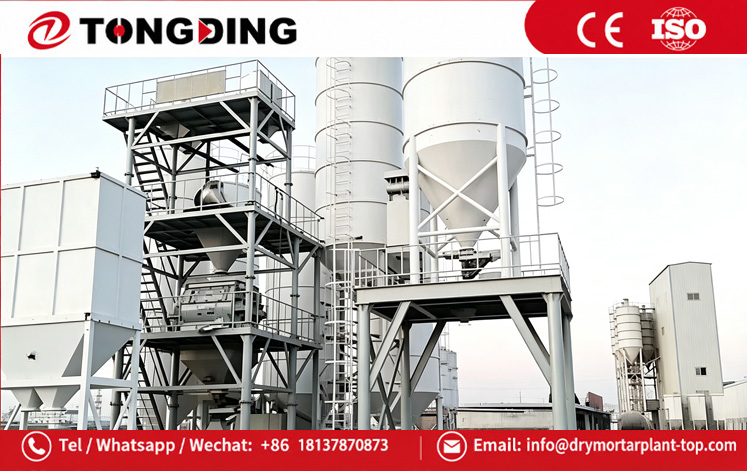

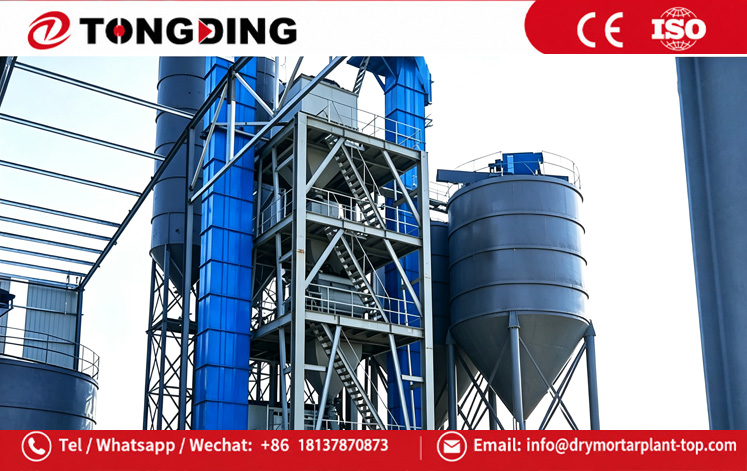

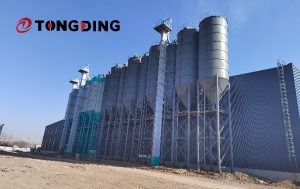

Fully Automatic Dry Mortar Production Line

Capacity: 10-170 T/H

Aplication: Masonry mortar，Plastering mortar(bottom)，Floor mortar，Caulking agent mortar(black)，Seaming agent mortar，Caulking agent mortar(white)…

Send E-mail Inquiry Now

Product Introduction

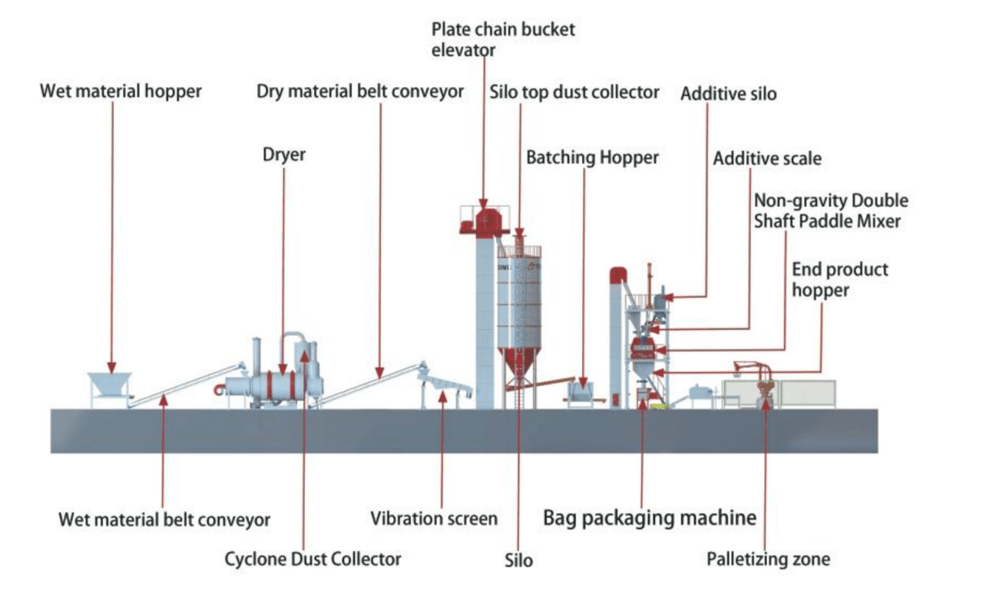

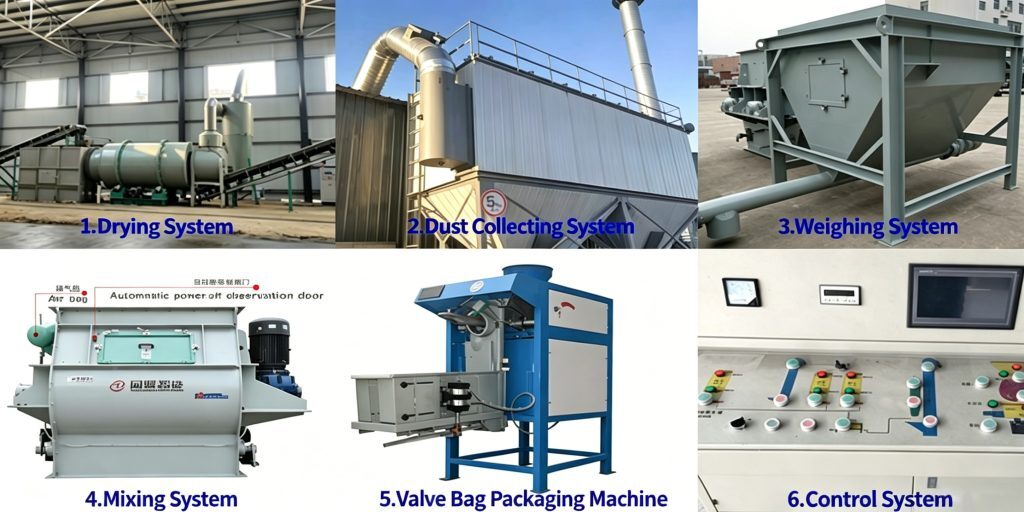

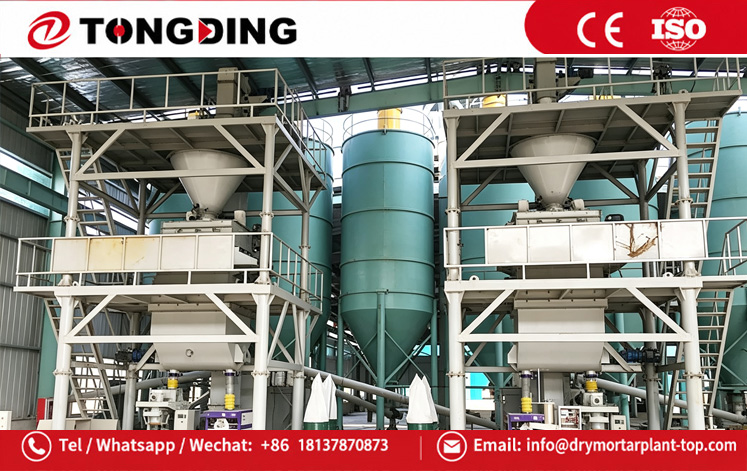

1. The main machine of the fully automatic dry powder mortar production line adopts a two-axis gravity-free mixer.

2. This machine is developed on the basis of integrating the technical essence of multiple generations of new models.

3. It has automatic feeding, pneumatic discharging, no accumulation of blocks on the barrel wall, and no dead ends Features.

4. All kinds of complete sets of dry powder mortar equipment produced by our company have the characteristics of small footprint, reasonable structure, simple operation, high production efficiency, no dust, reasonable power configuration, moderate investment, short construction period, and quick return on investment.

Advantages

1. Over 15 years of industry experience; mature technology and consistent quality.
2. Modular design: rapid installation, compact footprint, and low infrastructure costs.
3. High-efficiency, uniform mixing performance; compatible with various dry-mix mortars.
4. Precise metering and stable mix ratios ensure reliable product quality.
5. Intelligent PLC control system: high automation and ease of operation.
6. Eco-friendly dust removal ensures clean production and compliance with environmental standards.
7. Heavy-duty, wear-resistant construction; low failure rate and long service life.
8. Customizable specifications; direct factory supply offering excellent value for money.
9. Comprehensive one-stop service: full support for installation, training, and after-sales care.

Applicable Materials

Used for Masonry mortar，Plastering mortar(bottom)，Floor mortar，Caulking agent mortar(black)，Seaming agent mortar，Caulking agent mortar(white)，Seaming agent mortar，Thermal mortar，Self-leveling mortar，Whitewashed plaster(bottom)，Cement plaster mortar，External putty powder，etc.

Parameter

Model	Capacity (T/H)	Volume (m³)	Loading Coefficient/ Load factor	Rotary speed (r/min)	Mixing time (min)	Storage of finished-product	Power (kW)	Size (mm)
WSZ2	10-15	2	0.4-0.6	43	Adjustable	Packing on bags of 5-50kg	18.5	2460 x 1640 x 1520
WSZ3	15-25	3	0.4-0.6	43	0.5-3	Packing on bags of 5-50kg	22	2850 x 1640 x1520
WSZ4	25-40	4	0.4-0.6	29	0.5-3	Packing on bags of 10-50kg and in bulk	30	2800 x 2110 x 1950
WSZ6	60-120	6	0.4-0.6	29	1.5-3	Packing on bags of 50kg and in bulk	45	3130 x 2470 x 2120
WSZ10	100-170	10	0.4-0.6	29	1.5-3	Packing on bags of 50kg and in bulk	55	3600 x 3000 x 2510

Service

Tongding Machinery – Dry-Mixed Mortar Mixing Plant: Service Offerings

1.Pre-sales Customization
Includes free on-site surveys, site planning, and solution design; tailored dry-mix mortar plant configurations based on production capacity and material characteristics; and professional technical consultation and investment budget estimates.
2.Installation and Commissioning
Professional engineers provide on-site guidance for foundation construction, equipment installation, and system commissioning, ensuring proper installation and compliance with operating parameters for a smooth, successful start-up.
3.Operational Training
Systematic training for client operators and maintenance personnel—covering equipment operation, routine maintenance, safety protocols, and basic troubleshooting—to ensure they are fully competent and independent in their roles.
4.Warranty and Repair
Standard equipment warranty provided; free repairs and parts replacement for non-human-induced quality issues within the warranty period, with strict adherence to after-sales commitments.
5.Rapid After-sales Response
Dedicated after-sales support channels for quick answers via phone or online; prompt on-site engineer dispatch for major issues to minimize downtime.
6.Spare Parts Supply
Long-term, stable supply of genuine OEM wear parts and spares with transparent pricing and timely delivery, ensuring continuous and stable production.
7.Lifetime Maintenance
Lifetime technical support and regular follow-up inspections; extended services such as upgrades, retrofitting, and major overhauls are available to prolong equipment service life.
8.Production Support
Technical assistance for production processes, formula optimization, and capacity enhancement, helping clients resolve practical issues encountered during production.
